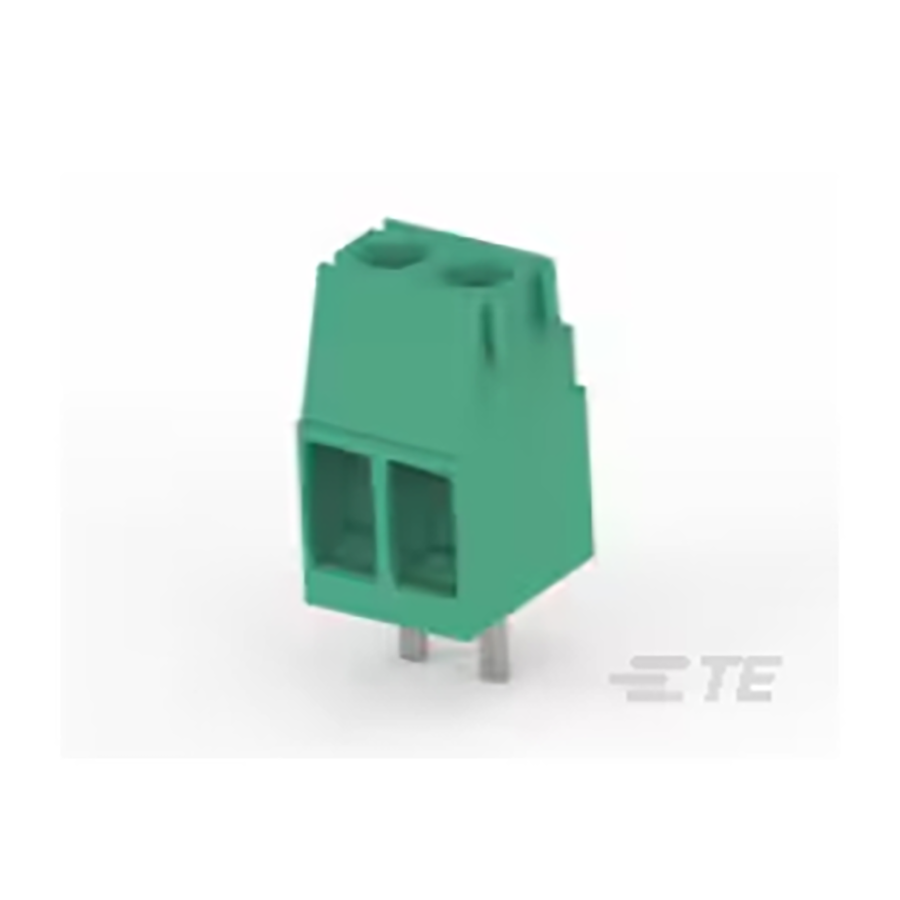

284391-2
Manufacturer:
TE Connectivity
Mfr.Part #:
284391-2
Datasheet:
Description:
Terminal Blocks Through Hole 2 3.5 mm 12 A 300 V 30 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Length | 7.5 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Box |
| Voltage Rating | 300 V |
| Depth | 8.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.5 mm |
| Current | 12 A |
| Current Rating | 12 A |
| Max Current Rating | 12 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Number of Contacts | 2 |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 30 AWG |
| Thread Size | M2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 14 AWG |
| Housing Color | Green |
| Plating | Brass |
| shrouded | Yes |
| Tail Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 14 AWG |
Stock: 7610
Distributors
pcbx
pcbxUnit Price$0.68848
Ext.Price$0.68848
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68848 | $0.68848 |
| 10 | $0.50244 | $5.02440 |
| 25 | $0.43773 | $10.94325 |
| 50 | $0.39493 | $19.74650 |
| 100 | $0.35828 | $35.82800 |
| 300 | $0.31218 | $93.65400 |
| 500 | $0.29414 | $147.07000 |
| 1000 | $0.27714 | $277.14000 |
| 3000 | $0.26113 | $783.39000 |
| 5000 | $0.24604 | $1230.20000 |
